Product Parameters:
Model: YTLG-18D
Specification: Multi manifold type with pressure cover
Freeze dried area: 0.12 square meters
Bottled volume of penicillin: Φ 12mm: 880
Φ16mm：465
Φ22mm：240
Cold trap temperature: ≤ -60 ° C
Capture water volume: 6kg/batch
Standard vacuum degree: ≤ 5PA
Ultimate vacuum degree: 2PA
Material tray: 3 layers with a diameter of 220mm
(Active layer)
Cold trap size: diameter 280 x height 350mm
Glass cover size: diameter 300 x height 460mm
Whole machine power: 680W (standard vacuum pump 550W)
Host weight: 86kg
Dimensions: 685x560x850mm (excluding cover)
Power supply: AC220V 25A 50HZ
Applicable environment: Environmental temperature ≤ 30 ° C
Host operating noise: ≤ 60dB
Standard configuration: 1 vacuum pump, 2 KF25 clamps, 1 KF vacuum hose
- Product Details
- Product manual

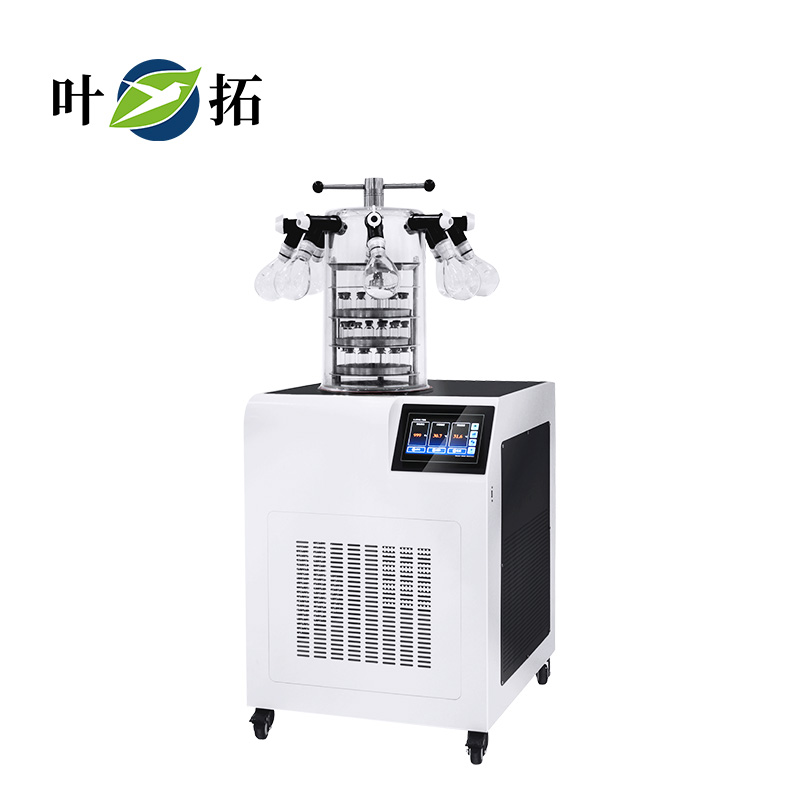

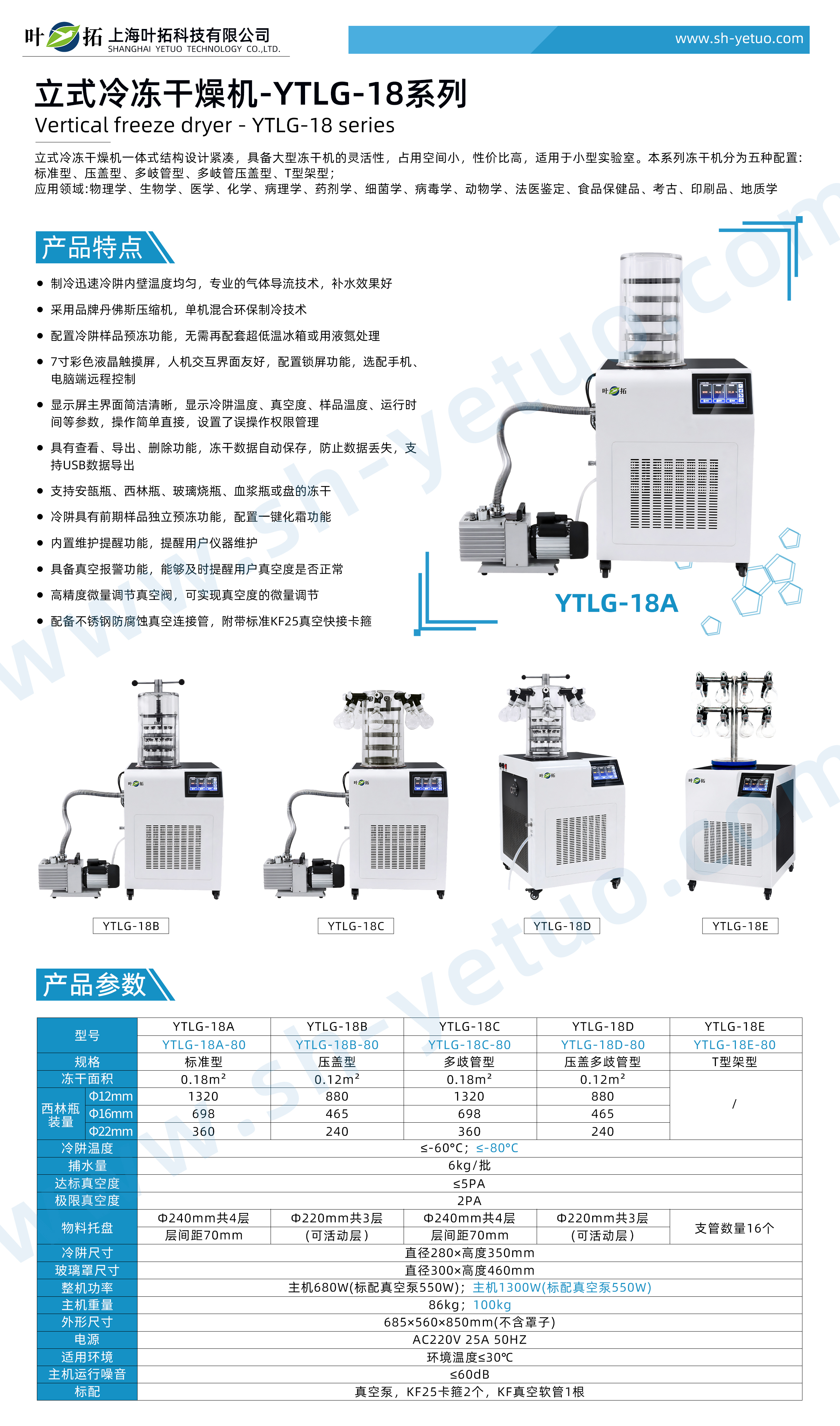

YTLG-18D vertical freeze dryer from Yetuo
Model: YTLG-18D
Product Overview:
The integrated structure design of the vertical freeze dryer is compact, with the flexibility of a large freeze dryer, small space occupation, high cost-effectiveness, and suitable for small laboratories. This series of freeze-drying machines is divided into five configurations: standard type, capping type, multi manifold type, multi manifold capping type, and T-shaped frame type.
Application areas: Physics, Biology, Medicine, Chemistry, Pathology, Pharmacy, Bacteriology, Virology, Zoology, Forensic Identification, Food and Health Products, Archaeology, Printed Materials, Geology.
Product Features of Yetuo YTLG-18D Vertical Freeze Drying Machine
Rapid refrigeration, uniform temperature on the inner wall of the cold trap, professional gas flow guidance technology, and good water replenishment effect
Adopting the brand Danfoss compressor and single machine hybrid environmentally friendly refrigeration technology
Configure the pre freezing function of the cold trap sample, without the need for an ultra-low temperature refrigerator or liquid nitrogen treatment
7-inch color LCD touch screen, user-friendly human-computer interaction interface, equipped with lock screen function, optional remote control on mobile phone and computer
The main interface of the display screen is simple and clear, displaying parameters such as cold trap temperature, vacuum degree, sample temperature, running time, etc. The operation is simple and direct, and the misoperation permission management is set
● It has viewing, exporting, and deleting functions, automatically saves freeze-dried data to prevent data loss, and supports USB data export
● Support freeze-drying of ampoules, penicillin bottles, glass flasks, plasma bottles or plates
The cold trap has an independent pre freezing function for the initial sample and is equipped with a one click defrosting function
● Built in maintenance reminder function, reminding users of instrument maintenance
Equipped with vacuum alarm function, it can promptly remind users whether the vacuum degree is normal
High precision micro adjustment vacuum valve, which can achieve micro adjustment of vacuum degree
Equipped with stainless steel corrosion-resistant vacuum connection pipe, accompanied by standard KF25 vacuum quick connect clamp
